eMotion XLS Sound Decoder
|
Part Number: DD8220055
Manufacturer: Massoth
Manufacturer Part No: XLSSND
|
|

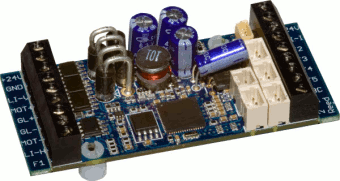

Massoth Electronics eMotion XLS Sound Decoder
|
Powerful 3 Amp HiFi Sound Decoder with up to 6 sound channels and 13 function outputs. Usable for locomotives with up to two motors.
NEW VERSION INCLUDES THE FOLLOWING FEATURES:
BREAK ON DC
Breaking with a special polarized DC-Voltage
VOLUME CONTROL OF EACH OPERATION SOUND TYPES
These 4 operation sound types can be adjusted separately:
Initial start sequences
Standing sound sequences
Shut down sequences
Operation sound sequences
LGB OR SUSI INTERFACE INTEGRATED.
The new eMOTION XLS Sound Decoder is the up and coming standard of the exquisite garden model railroad sound decoders. The XLS features a powerful output stage for up to two motors (3 AMPS) as well as 1 AMP for sound, light, and other functions.
Additionally, 11 function outputs including 3 light outputs and 4 contact inputs are available which makes this unit exceptionally feasible.
The integrated sound power amplifier with 6 independent sound channels sets the standard in today's locomotive sound simulations. The audio power amplifier delivers 1 watt (sinus) at 8 ohms impedance. The eMOTION XLS Sound Decoder delivers optimum characteristics for analog and digital operation.
Optimized Analog- and Digital operation guaranteed
The XLS works in analog mode starting at the lowest voltage possible. The settings and functions of the decoder may be set with the DiMAX PC Module and may be used in analog mode. Thus sounds may be triggered in analog mode via reed contacts.
NMRA DCC and LGB MZS
The eMOTION XLS is compatible to NMRA/DCC and works with all generations of the LGB MTS systems. State of the art DATAFLASH technology and the latest programming procedures enable the reloading of sounds and software directly via the track.
ORIGINAL SOUND in digital quality
The XLS is delivered with a HiFi loudspeaker (57 mm) with a metal cap and an interface cable for LGB and Aristocraft DCC. The unit may be installed wire by wire as well. Mounting material is provided.
Technical Data Drive Decoder:
- NMRA/DCC compatible
- LGB MTS I, II, and III compatible
- best driving characteristics with analog op. (selectable)
- 14, 28, and 128 Speed Steps
- 256 internal speed steps
- 10239 Locomotive Addresses
- Automatic Detection of operating mode and speed steps setting
- 3.0 Amps max. continuous output (drive stage)
- 4.0 Amps max. maximum total output (incl. functions)
- Adjustable Motor frequency
- Load Control in digital and analog
- Switching Speed (programmable)
- Adjustable Motor driving curve
Technical Data Sound Amplifier:
- 6 independent sound channels
- High end amplifier stage with 1 Watt output (sinus)
- Loudspeaker connection with 8 Ohms impedance
- Sound Storage Capacity up to 150 sec.
Technical Data Function Outputs:
- 3 Light outputs (front, rear, internal 0.3 Amps each)
- 6 Function outputs (0.6 Amps each)
- Programmable Special Functions
- Suitable for Power Buffer connection
- 1 Amp max output of all function outputs
- Intelligent function mapping up to F16
- Parallel and serial data processing (LGB© MTS Pulse Chain Control)
and automatic detection (serial data processing disengageable)
Size in Millimeters: 60 x 32 x 18 mm
The Background music in MP3-Demo Sounds are not present in XLS modules
